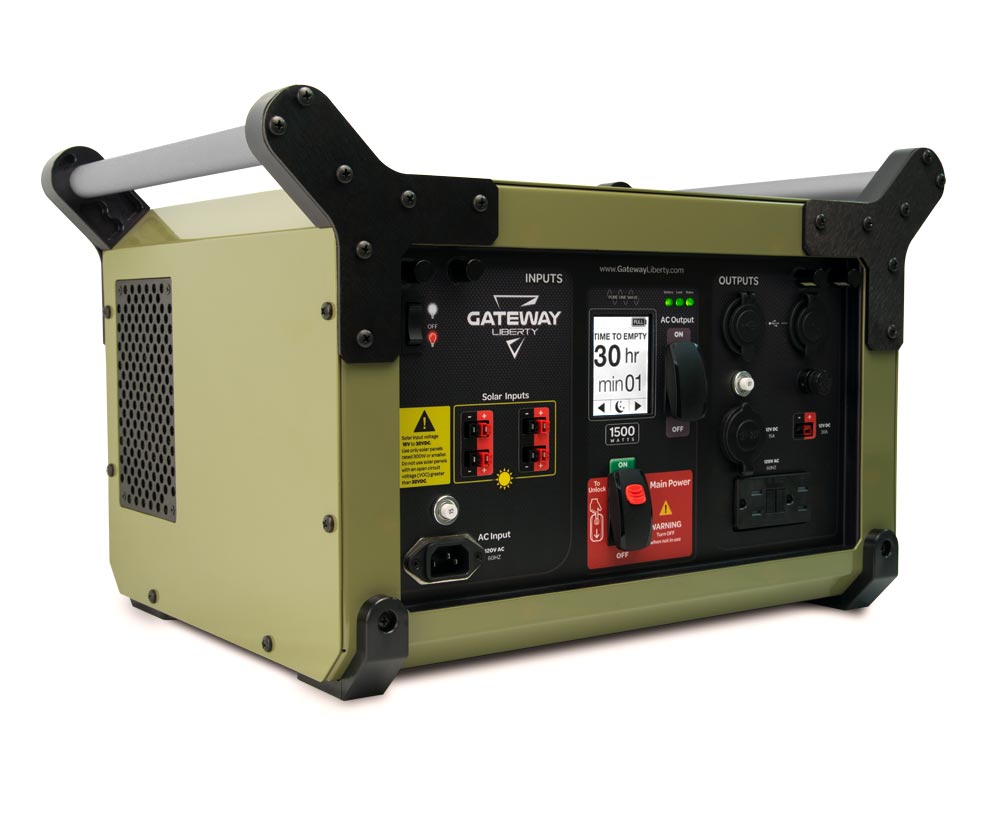

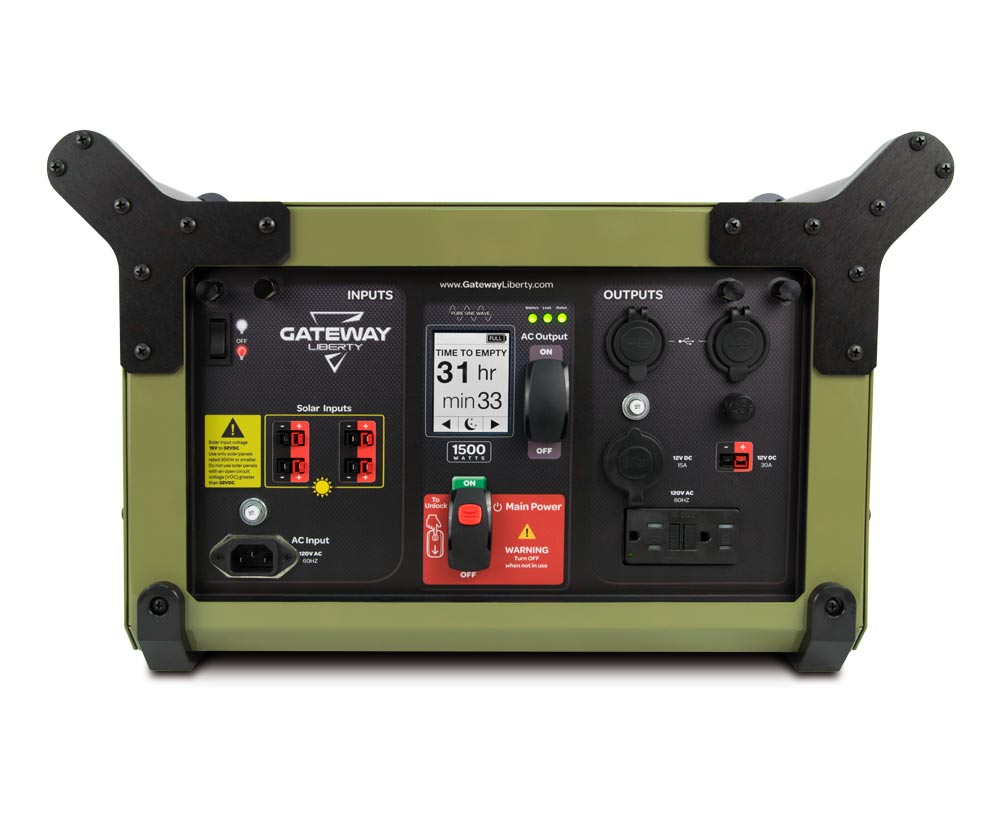

Gateway Liberty – 1500W Portable Solar Generator Kit
Gateway Liberty – 1500W Portable Solar Generator Kit
- Gateway Liberty – 1500W Portable Solar Generator
- 2X 100W, 12v Solar Panel
- 25' extension chord

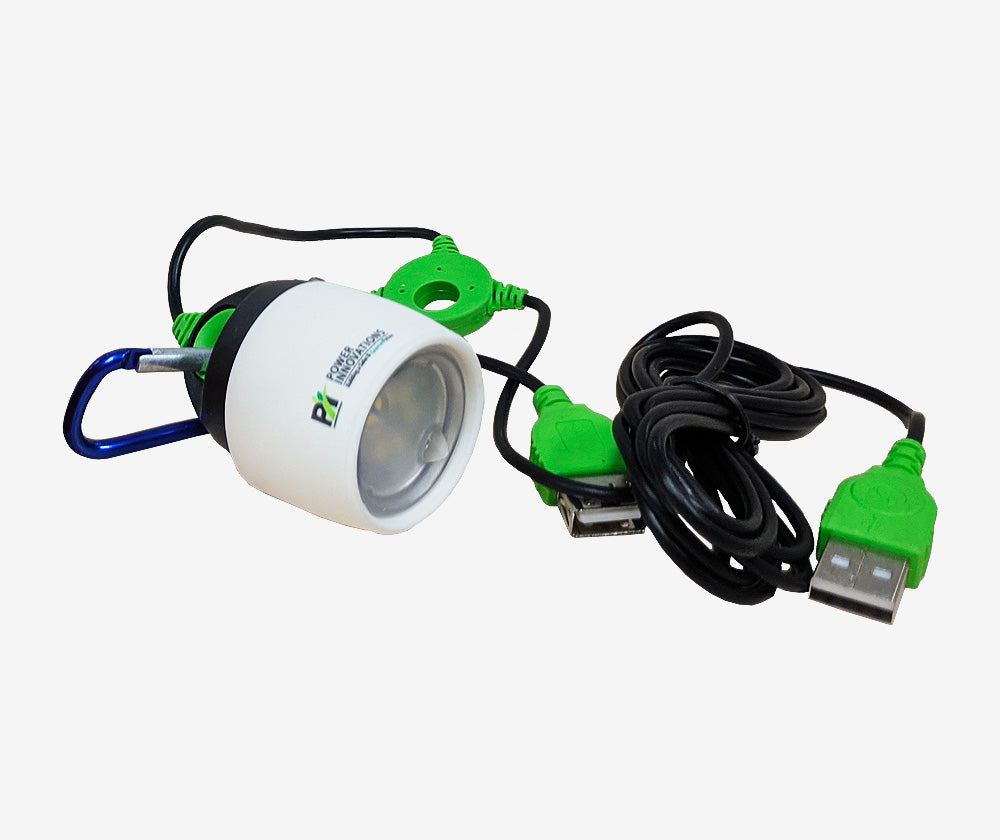

- flood light
WHY IS THE GATEWAY LIBERTY THE BEST IN THE INDUSTRY?
The Gateway Liberty is the lightest portable power source on the market. Innovative battery storage and charging technology provide long run times and incredible energy retention for up to one year. With 120V AC (pure sine wave), 12V DC, and smart USB ports, all of your power needs are catered for. The most efficient MPPT charging system is built in to the Gateway Liberty allowing a full charge in just 2 hours with the AC fast charger or in only 3 hours with solar panels (4 x 100W). It also has pass-thru charging, which means it can be charged at the same time you are charging other devices. The full color TFT display lets you monitor your battery capacity, charging and power functions at all times. If you need to jump start your vehicle, illuminate a work or camp site, run your critical appliances, or just charge your phone – the Gateway Liberty will do it all!
Gateway Liberty typical run times
When you use your Gateway Liberty to power your critical appliances here are some guidelines for the typical run times you can expect.
asher, 500W |
Microwave , 1000W 51 min |
Power tools, 1000W 51 min |
Stereo 60W 12 hours |
Food blender 300W 2.8 hours |
Desktop PC 100W 8.5 hours |
LCD TV 42” 220W 3.8 hours |
Games Console 100W 8.5 hours |
Pedestal fan 60W 14 hours |
Fridge/freezer 100W 8.5 hours |
Phone charger 5W 170 hours |
Tablet charger 10W 85 hours |
Laptop PC 60W 14 hours |
LED light 18W 47 hours |
Clock radio 10W 3.5 days |
Note: This information is given as a guide and run times are based on continuous use with the appliance running at 100% continuously. Appliance power consumption will vary depending on actual rating and usage environment. Certain items (low power or intermittent usage), when powered by Gateway Liberty and attached solar panels may run perpetually. (i.e. cell phone, low energy lighting, laptop, tablets, refrigerators).
Specifications
Power | 1500 Watts (continuous) 2000 Watts (peak – 2600W for 1 second and 1700W for 1 minute |
Weight | 20.5kg (45.2lbs) |
Dimensions | Width – 508mm (20″) Depth – 353mm (13.9″) Height – 312mm (12.3″) |
Charging | Solar – 3.5 hours (with 4 x 100W panels) AC (normal) – 9 hours AC (fast charger) – 2hours |
DC Input | 15V to 32V DC (12 V Solar Panel) |
DC Input Current | MAX 40A (25A per connector) |
Output | 120V AC x 2 12V DC x 2 (Anderson MAX Output Current is 30A with replaceable fuse) 5V DC (USB) (2 x 2.1A and 2 x 1A) |
Battery | LiFePo4 (780 W/Hr) |
TFT Full Feature Display | Battery Capacity, Load, Discharge/Recharge Time Estimate, Status Indicators |
Application |
Emergency – Preppers, emergency services, home, vehicles, boats |
